The AGR Socket Tracer Component detects hits using socket-defined points on a mesh and customizable trace shapes. This tracer is ideal for weapons or actions where spatial movement is defined by mesh sockets, such as sword swings, melee punches, or whip-like attacks.

It supports different trace modes, shapes, hit modes, and the ability to override segment count and trace parameters from the combat component.

Socket Tracer Settings​

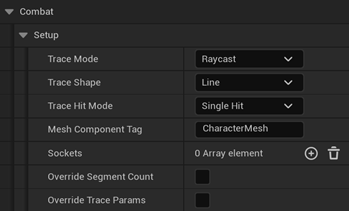

Socket Tracer Settings

Setup​

  • Trace Mode : Determines how trace points are used during the trace operation.
  • Trace Shape : Geometric shape used for tracing (e.g., line, sphere, capsule).
  • Trace Hit Mode : Whether to detect a single hit or multiple hits.
  • Mesh Component Tag : The tag used to identify the mesh component (e.g., skeletal or static) that provides sockets.
  • Sockets : List of socket names used to define the trace path. Requires at least two sockets.
  • Override Segment Count : If true, overrides the segment count from the combat component.
  • Overridden Segment Count : Custom segment count used for tracing. Only active if override is enabled.
  • Override Trace Params : If true, overrides the trace parameters from the combat component.
  • Overridden Trace Params : Custom trace parameters used for hit detection (trace channel, profile, ignored actors, etc.).
tip

To ensure accuracy, the first socket in Sockets should ideally be at the tip of the weapon (e.g., blade or fist).

note

You can override the default segment count and trace parameters from the combat component for this individual tracer.

Events​

On Trace Started​

Triggered when tracing begins.

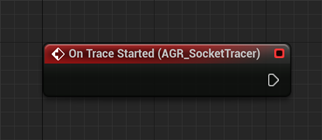

On Trace Started

On Trace Ended​

Triggered when tracing ends.

  • Trace Hit Result 1 : A wrapper containing all actors and their associated hit results.

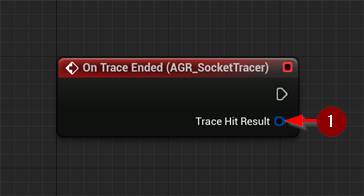

On Trace Ended

On Hit​

Triggered for every hit during tracing.

  • Hit Result 1 : Data about the actor hit by the tracer.

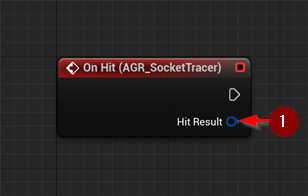

On Hit

On Unique Hit​

Triggered only for unique actor hits per trace cycle.

  • Hit Result 1 : Data about the unique hit.

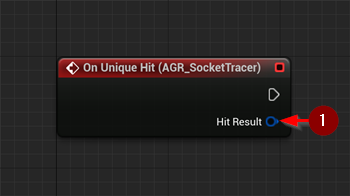

On Unique Hit

note

A unique hit means the same actor is only counted once during a trace cycle.
